Front and back plates only for use with existing mortice latch or lock. The existing lock must have either a fixing hole 22mm below follower (spindle) or two horizontal holes either side of the follower (38mm centres).
Quick Code change!
The CL600 range incorporates the new Quick Code system which allows on door code change in seconds. Typically most mechanical digital locks require the lock to be removed from the door or partly disassembled to change the code.
- Internal doors and external doors
- Front and Back Plates only – for use with existing mortice latch or lock
- Quick Code change - no need to remove lock from door
- Over 8000 code combinations
- Lever handle lock for doors hung on the left or right
- Available in brushed steel and polished brass
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- Tested to Grade 2 - ANSI - A156.2
Code Free access option on the keypad
In Code Free mode the outside lever will retract the latchbolt without using a code. This option is ideal for day to day use when punching in a code is not necessary e.g. external doors in a school with high traffic.
Supplied with a random code commencing with the ‘C’ clear button. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 13 buttons a total of 8,191 different codes are available, any of which may be entered in any order. The CL600 range has been designed so that the code can be changed on the door in seconds.
IMPORTANT: When using CL600 & CL605 front and back plates only, please test with your selected lock-case to ensure that the latch retracts fully from the code side without too much resistance. Some lock-cases have a heavily sprung latch follower designed to use with un-sprung lever furniture. This heavy springing can defeat the clutch on our locks. If in doubt do not specify one of our locks with a lock-case that is designed for use with un-sprung lever furniture. Please note the code chamber for mechanical locks requires the lever to be rotated at least 45 degrees to re-set the lock the for next code user.
Please contact our Codelocks technical department if you are unsure. Codelocks Limited does not accept responsibility for products incorrectly specified.
* CL600/605 does not require a separate installation template. Please use the neoprene seal that comes with the product. Download instructions opposite for full installation guide.
Brand: Codelocks
Body Material: Zinc Alloy
Codes: 8,191 non sequential codes available
Code free option: CL605
Code change method: On door via key
Code in / code out: No
Code storage: Single code
Door thickness: 35mm - 65mm (1 3/8" - 2 1/2")
Keying alike: Locks can be supplied as keyed alike on request
Key cylinder change: From lock front (6 pin)
Key override: As standard the lock has a key override function
Non handed: Lock will fit doors hung on the left or right
Spindle type: 2 part 8mm (5/16") spring loaded spindle
Suitable for: Internal and external use
Type: Front & backplates only

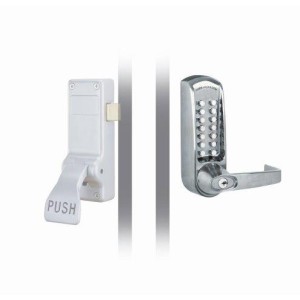

CL600 Codelock
- Brand: Codelocks
- Product Code: CL600 Codelock
- Availability: In Stock
-
£244.20
- Ex Tax: £203.50
